Zhucheng Yihe Axle Co., Ltd.Zhucheng Yihe Axle Co., Ltd.

About Us

Company
About Us

CHINA YIHE AXLES Co., Ltd was established in 1994, located in Zhucheng city of Shandong province. Now, YIHE is becoming one of the biggest axle production bases with the annual capacity of 1.2 million sets axles. YIHE owns 5 production bases, located in Zhucheng of Shandong and Changsha of Hu’nan. Our company has 2500 employees and mainly produces Truck front axles, truck seats, welding structure parts, independent suspension axles, U bolts, agricultural drive axles.

  • 500Sets

    Equipments

  • 1200000Sets

    Annual Production Capacity

  • 5000m2

    Technical Center

View More

Products

  • I-Beam Axle
  • Welded Structural Parts
  • Truck Axle & Truck Seat
  • 1.5 ton I-BEAM

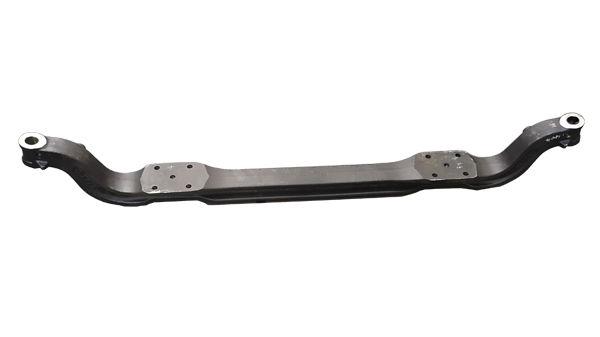

    1.5 ton I-BEAM

    Material:45#
    Rated load:1.5T
    Distance between kingpins:1354
    Distance between leaf springs:710
    Kingpin diameter:φ25
    Kingpin Inclination:7.5°
    Drop:64+8

  • 2.2 ton I-BEAM

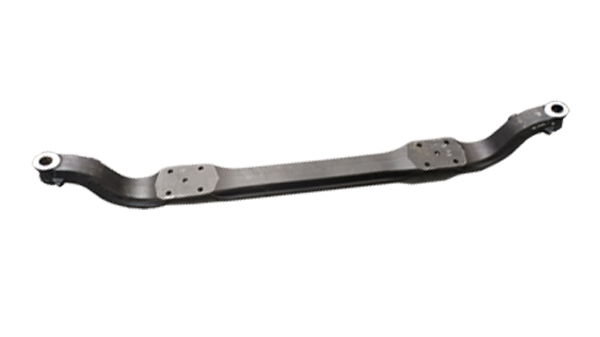

    2.2 ton I-BEAM

    Material:45#
    Tonnage:2.2T
    Distance between kingpins:1359
    Distance between leaf springs:750
    Kingpin diameter:φ30
    Kingpin Inclination:7.5°
    Drop:64+5

  • 2.5 ton I-BEAM

    2.5 ton I-BEAM

    Material:45#
    Tonnage:2.5T
    Distance between kingpins:1472.4
    Distance between leaf springs:760
    Kingpin diameter:φ32
    Kingpin Inclination:8°
    Drop:70+34

  • 7.5 ton I-BEAM

    7.5 ton I-BEAM

    Material:42CrMo
    Tonnage:7.5T
    Distance between kingpins:1767
    Distance between leaf springs:850
    Kingpin diameter:φ45
    Kingpin Inclination:3°
    Drop:89

  • 5.5 ton I-BEAM

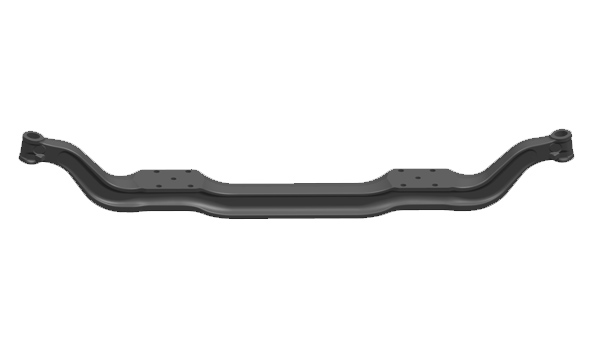

    5.5 ton I-BEAM

    Material:42CrMo
    Tonnage:5.5T
    Distance between kingpins:1853.3
    Distance between leaf springs:850
    Kingpin diameter:φ47
    Kingpin Inclination:7°
    Drop:φ16

  • 5 ton I-Beam

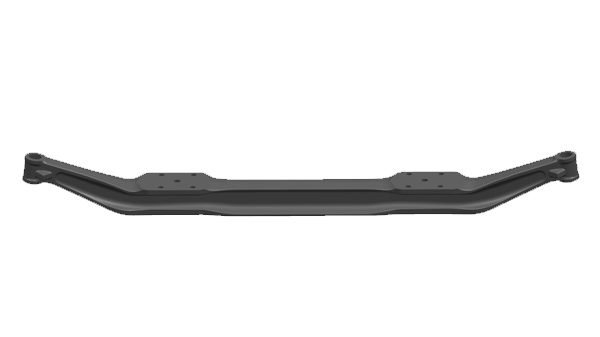

    5 ton I-Beam

    Material:42CrMo
    Tonnage:4.5~6.1T
    Distance between kingpins:1820
    Distance between leaf springs:850
    Kingpin diameter:φ45
    Kingpin Inclination:6.5°
    Drop:φ14

View all products
  • Welded structural parts of wheat harvester chassis

    Welded structural parts of wheat harvester chassis

    The front axle and the frame adopt an integrated structure, and the header can adopt single cylinder or double cylinder.

  • Welded structural parts of corn harvester chassis

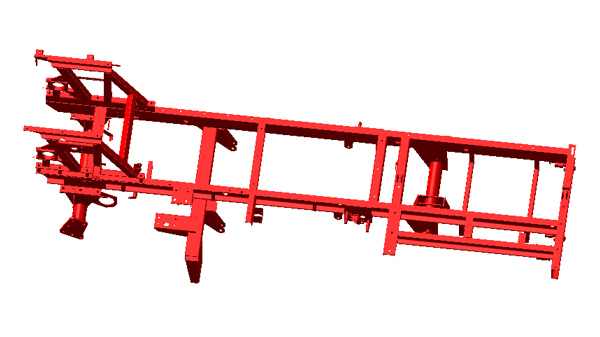

    Welded structural parts of corn harvester chassis

    The upper frame and the front axle have two structures.（Welding in one piece or assembling separately）

  • Welded structural parts of cotton picker chassis

    Welded structural parts of cotton picker chassis

    The front axle closed side by structure ; The rear axle fixed seat with casting structure.

  • Welded structural parts of lifting machine chassis

    Welded structural parts of lifting machine chassis

    Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

  • Welded structural parts of lifting machine platform

    Welded structural parts of lifting machine platform

    Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

  • Welded structural parts of lifting machine scissors

    Welded structural parts of lifting machine scissors

    Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

View all products
  • 1 ton truck steering axle

    1 ton truck steering axle

    Material:45
    Tonnage:1T
    Distance between kingpins:1165~1360
    Distance between leaf springs:650~780
    Kingpin diameter:φ25
    Kingpin Inclination:7.5°
    Drop:23~60
    Brake specification:Φ280~320
    Rim mounting face distance:1215~1600

  • 3.5 ton truck steering axle

    3.5 ton truck steering axle

    Material:40Cr
    Tonnage:3.5 T
    Distance between kingpins:1630
    Distance between leaf springs:800
    Kingpin diameter:φ32
    Kingpin Inclination:8°
    Drop:95
    Brake specification:Φ320~360
    Rim mounting face distance:1900~2224

  • 4 ton truck steering axle

    4 ton truck steering axle

    Material:45
    Tonnage:4 T
    Distance between kingpins:1727
    Distance between leaf springs:851~890
    Kingpin diameter:φ38
    Kingpin Inclination:7°
    Drop:74
    Brake specification:Φ400
    Rim mounting face distance:2204

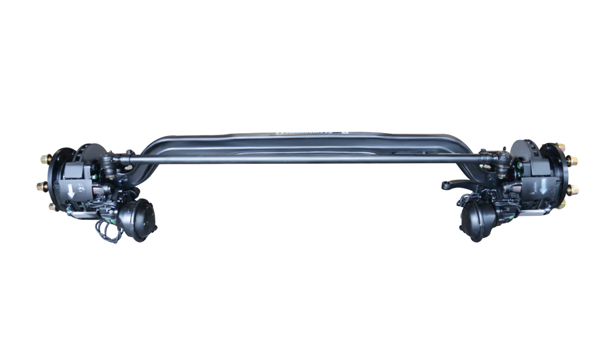

  • 2.2 ton truck axle

    2.2 ton truck axle

    Material : 42CrMo
    Rated load : 2.2T
    Distance between kingpins:1490
    Distance between leaf springs:850
    Kingpin diameter:φ35
    Kingpin Inclination:7°
    Drop:89
    Brake specification:Φ250*45
    Rim mounting face distance:1980

  • 6.5ton truck axle

    6.5ton truck axle

    Material : 42CrMo
    Rated load : 6.5T
    Distance between kingpins:1800.8
    Distance between leaf springs:850
    Kingpin diameter:φ52
    Kingpin Inclination:7°
    Drop:89
    Brake specification:Φ430*45
    Rim mounting face distance:2410.7

  • 9ton truck axle

    9ton truck axle

    Material:42CrMo
    Rated load:9T
    Distance between kingpins:1770
    Distance between leaf springs:850
    Kingpin diameter:φ52
    Kingpin Inclination:6°
    Drop:89
    Brake specification:Φ420*180
    Rim mounting face distance:2372

View all products
  • 1

    Provide CustomizedForms

  • 2

    Analyze CustomerNeeds

  • 3

    Design TeamDiscussion

  • 4

    Drawing of ContourParameters

  • 5

    Drawing Confirmation orCommunication Modification

  • 6

    Custom SampleProduction

  • 7

    Sample LoadingRoad Test

  • 8

    Mass Production

Axle customization process
Axle
customization
process Customize Now

Cases

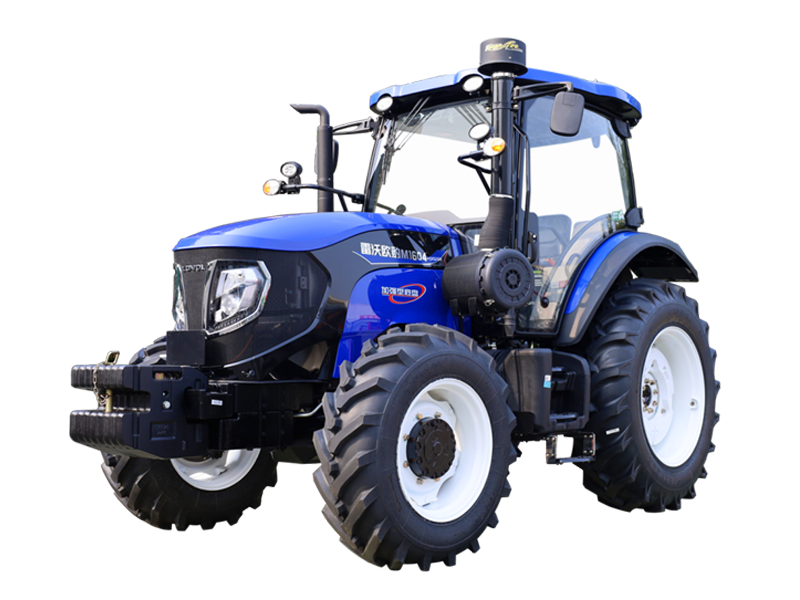

Tractor axles used by Foton Lovol
Tractor axles used by Foton Lovol

Absorbing advanced technology of foreign drive axles; ·The internal structure includes central reduction, ...

Lingong Group Jinan Heavy Machinery uses welded structural parts of the lifting machine chassis.
Lingong Group Jinan Heavy Machinery uses welded structural parts of the lifting machine chassis.

Customer Name：Lingong Group Jinan Heavy Machinery Customer Products：Aerial Work Platforms Welded structural ...

Foton uses Yihe axles products
Foton uses Yihe axles products

The largest axle manufacturer in China, an excellent supplier of China's mainstream automobile manufacturers, ...

Ollin uses truck steering axle
Ollin uses truck steering axle

Customer Name：FOTON Customer Products：OLLIN Application products：truck steering axle. The largest axle manu...

Boshiran uses Welded structural parts of cotton picker chassis
Boshiran uses Welded structural parts of cotton picker chassis

Customer Name：Boshiran Customer Products：cotton picker Application products：Welded structural parts of cott...

$columnnames
$columnnames

Why choose us

R&D Capability
R&D Capability

In 2011, Yihe was approved by the provincial science and Technology Department of Shandong Province to construct “ Shandong Province Vehicle Axles Engineering Research center ”. This engineering center has 7 professional engineering centers and more than 190 engineers. It has won more than 129 national patented technologies for axle production.

Mass Production
Mass Production

Introduce more than 500 sets of advanced, precise and topequipments, has three high efficient welding assembly lines, four light duty truck axle assembly lines, two medium and heavyduty truck axle assembly line, and two high level heavy truck axle assembly lines, with the annual production capacity of 1.2 million sets.

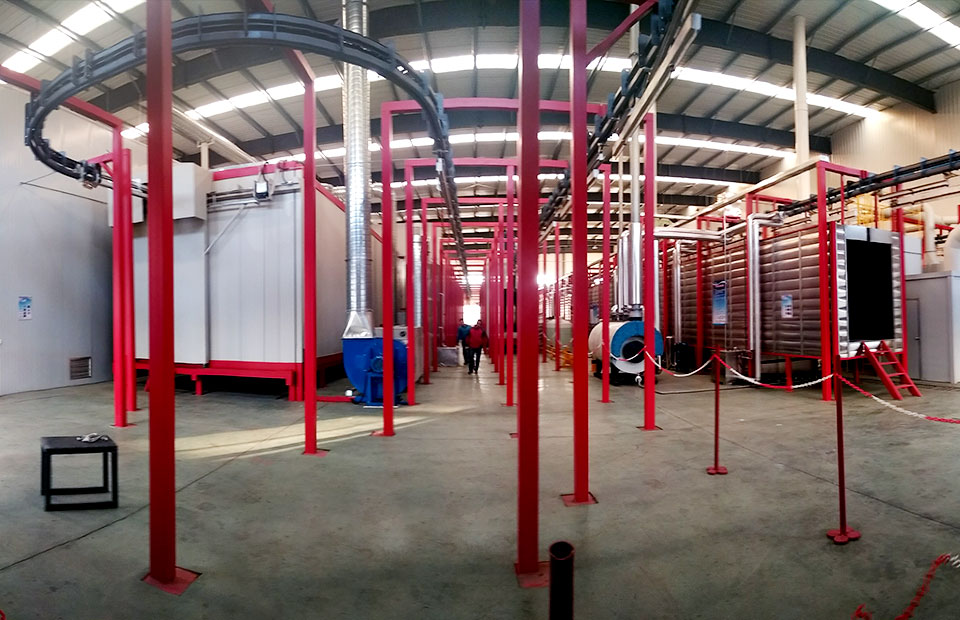

Powder Coating Line
Powder Coating Line

Invested 20 million to build a powder spraying line, which enhanced the product's appearance weather resistance, brightness and hardness, and the salt spray test reached 1,000 hours. Adhesion reaches the highest standard of level zero.

High Quality
High Quality

Established the Axle Parts Inspection Department to fully monitor the quality of raw materials 3 automated welding production lines with high degree of automation and guaranteed quality. The company has passed IATF16949 quality system certification, EU TUV certification, CWB certification.

  • R&D Capability
  • Mass Production
  • Powder Coating Line
  • High-quality

LATEST NEWS

  • 2026 Annual Business Plan of China Yihe Axle Company Jan17 View More
    2026 Annual Business Plan of China Yihe Axle Company

    Recently, the 2026 business plan meeting of Yihe Axle Co., Ltd. was successfully held. The following are the key meeting contents:

  • Yihe Axle has won 8 awards from Foton Motor, creating a model of cooperation with strong capabilities Dec23 View More
    Yihe Axle has won 8 awards from Foton Motor, creating a model of cooperation with strong capabilities

    Recently, at the award ceremony of Foton Motor 2025 Global Partner Conference, Zhucheng Yihe Axle Co., Ltd. won eight heavyweight honors including Outstanding Contribution Award, Cooperation Win win Award, Technology Innovation Award, Servi...

  • Technological innovation in axle safety and comfort for the new energy light truck market in Chinese cities Dec17 View More
    Technological innovation in axle safety and comfort for the new energy light truck market in Chinese cities

    The upgraded demand for safety and comfort in the urban new energy light truck market has spurred technological innovation. Yihe Axle is an intelligent front axle assembly customized for Foton Scenery I. It integrates a long-life maintenanc

  • What are the advantages of domestic light truck axles in China? Dec16 View More
    What are the advantages of domestic light truck axles in China?

    where the industrial cluster effect of commercial vehicles is prominent, the light truck axle manufacturing industry, with its profound industrial accumulation, technological innovation strength and complete supporting system, has become a ...

  • Publicity of business license information of corporate enterprises Dec05 View More
    Publicity of business license information of corporate enterprises

    Scope of Business: Sales of automobile axles, combine harvester chassis assemblies, agricultural machinery, fishery machinery, feed machinery, auto parts, and petroleum machinery; sales of automotive components; and import and export of goods. (Projects that require approval according to law may only be operated after obtaining approval from relevant departments)

  • Export Growth Trend of China's Automotive Axle Products Dec04 View More
    Export Growth Trend of China's Automotive Axle Products

    Overall Momentum China’s automotive axle exports are on asustained upward trajectory, with accelerated growth in recent years—fueled by the Belt and Road Initiative (BRI) and global auto industry electrification. Key milestones:...

  • Yihe Axle Long Maintenance achieves a 100000 kilometer maintenance interval at the wheel end Dec03 View More
    Yihe Axle Long Maintenance achieves a 100000 kilometer maintenance interval at the wheel end

    1. Case Study of Batch Application of Yihe Axle in Long distance Mainline Logistics Vehicle CompanySelect a logistics enterprise that specializes in cross regional dedicated line transportation (such as a logistics group in Shandong, echoin...

  • Double Awards Crown the Industry Benchmark: Yihe Axle Leads the Auto Parts Track with Solid Strength Dec01 View More
    Double Awards Crown the Industry Benchmark: Yihe Axle Leads the Auto Parts Track with Solid Strength

    [Introduction] At the beginning of 2025, the Chinese automotive industry chain has been witnessing a spate of good news. In the field of commercial vehicle core components, Zhucheng Yihe Axle Co., Ltd. has consecutively won two heavyweight ...

  • Which is a good manufacturer of heavy-duty truck axles Nov24 View More
    Which is a good manufacturer of heavy-duty truck axles

    As the "load-bearing backbone" of the entire vehicle, the axle of a heavy truck not only carries dozens of tons of body and cargo weight, but also directly determines the response efficiency and driving safety of the braking system. Its per...

  • Innovation in steering axle technology for Chinese commercial vehicles drives industrial upgrading Nov17 View More
    Innovation in steering axle technology for Chinese commercial vehicles drives industrial upgrading

    Market size and development statusAccording to the latest industry data, the scale of China's commercial vehicle electronic axle market will continue to expand in 2024, and the global commercial vehicle electronic axle market is expected to...

  • The importance of matching car axles Nov13 View More
    The importance of matching car axles

    In the complex power transmission system of automobiles, axles play a crucial role in carrying and transmitting power and torque. The so-called car axle matching refers to the precise selection or customization of front and rear axles (driv...

  • What horsepower should be selected for the front and rear axles of a tractor Nov11 View More
    What horsepower should be selected for the front and rear axles of a tractor

    The horsepower of tractors is generally 180, 200, 250, 300, 354, 550, 654, 724, 804, 1004, 1204, 1604, etc. If you are only pulling something or small areas of farmland, generally use tractors with less than 354 horsepower, which is less th...

contact

Please feel free to get in touch with us for any of your queries.

  • Name:*
  • Email:*
  • Massage:
